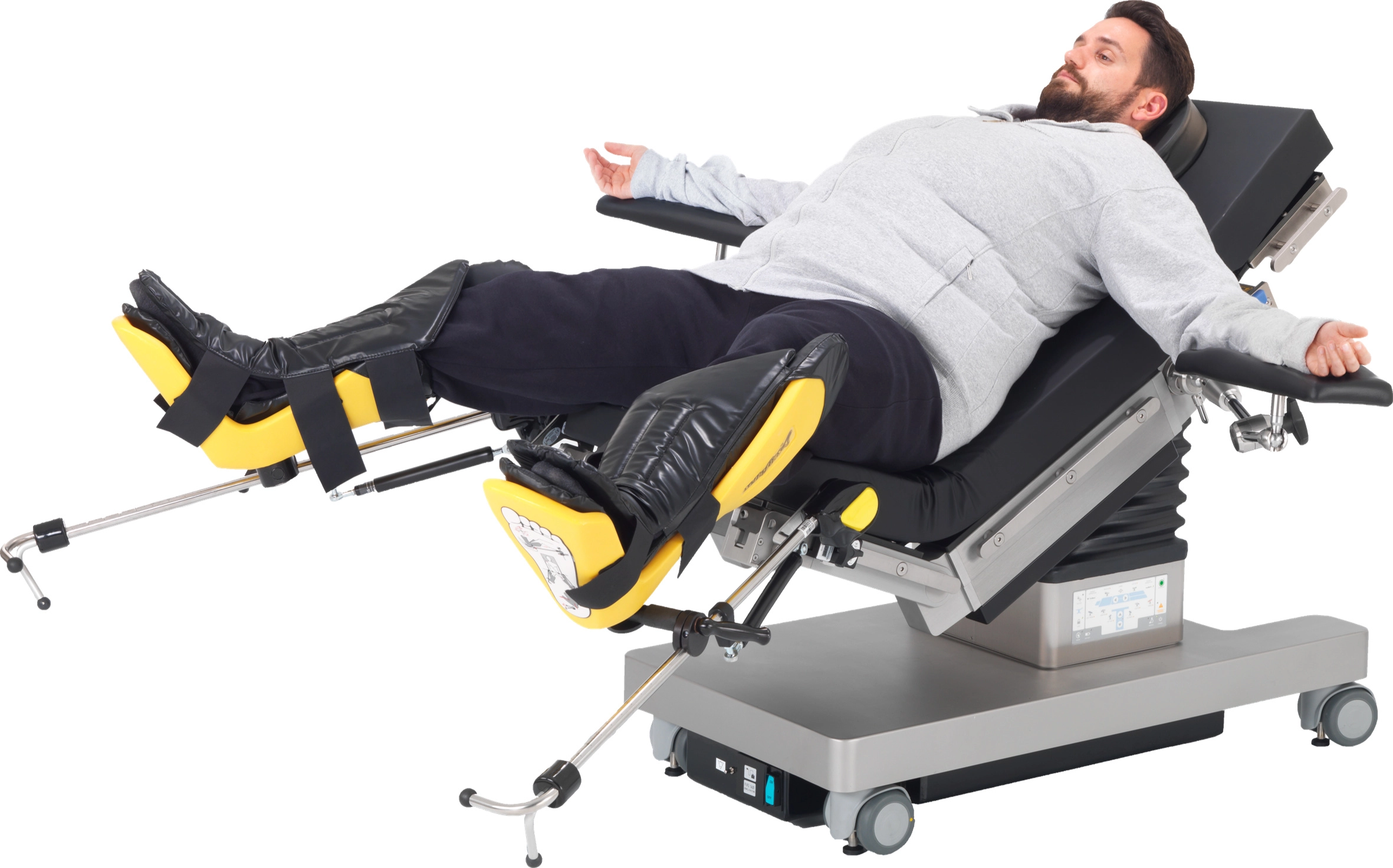

Operating Table PST 300

Mobile operating table with electrically motorized adjustment of height, Trendelenburg/ anti-Trendelenburg, tilt, longitudinal shift, back and leg section; table top can be operated with either the cable or IR remote control; electromechanical floor lock;

Specialties: Manufacturers:
24
7
SUPPORT

Mobile operating table with electrically motorized adjustment of height, Trendelenburg/ anti-Trendelenburg, tilt, longitudinal shift, back and leg section; Two-part table top, consists of seat and long or short back section with hook coupling point at head and foot end; with Velcro; Column and table top can be operated with either the cable or IR remote control; table base with four electrically conductive double swivel wheels and with an electromechanical floor lock; Load capacity : 400 kgr longitudinal shift: 11 in (34 cm) dimensions side rail: 0.89 in x 0.39 in (25 mm x 10 mm); viscous elastic Balanced pad 90 mm; With Velcro strap Head section double or single joint, one hand operation; gas spring supported; Upper back section Leg section two parts or four parts spreadable Intuitive design; all operating elements are color – coded for quick access and easy use Quick setup; the table΄s lightweight components and self-aligning hook-coupling point system make set and modifications quick and easy Easy to move; Dual castors help you to easily move the table where you need it Motorized functions; motorized longitudinal slide, foot pedals and tilting capabilities remove the heavy lifting from your workflow Longitudinal slide for flexible C-Arm access; 340mm motorized longitudinal slide enables easy imaging access Slim design; Enjoy better ergonomics and access to your patient with under base foot placement and C-arm accessibility

Electrical movements :

  • Height: 66cm - 103cm
  • Trendelenburg /Anti-Trendelenburg: +30°/- 30°
  • Tilt : +/- 25°
  • Back section: +80°/-60°
  • Leg section: +80°/ -92°
  • Flex/reflex
  • Zero (0) position
  • Longitudinal slide: 34 cm

Dimensions: 2236 Χ 600 mm Weight: 237 Kgr Operating Voltage: 220 – 230 V

Brochure PST 300
