AeroDR2 1417HQ, Wireless Digital Radiography System
MANUFACTURER : KONICA MINOLTA
SPECIALTIES : Radiology - Diagnostic

Second-generation 1417 high-performance model providing high image quality. Offering load-tolerant performance and water resistance, as well as high image quality, this machine serves well in various hospital settings.

  • CsI scintillator, Higher DQE
  • Lightweight 2.6 kg, Robust structure
  • Water resistance IPX6
  • AeroSync (AED function) (AED: Automatic Exposure Detection)
  • Powered by a lithium ion capacitor
DETAILED DESCRIPTION
TECHNICAL SPECIFICATIONS
ACCESSORIES
RELATED FILES
VIDEO

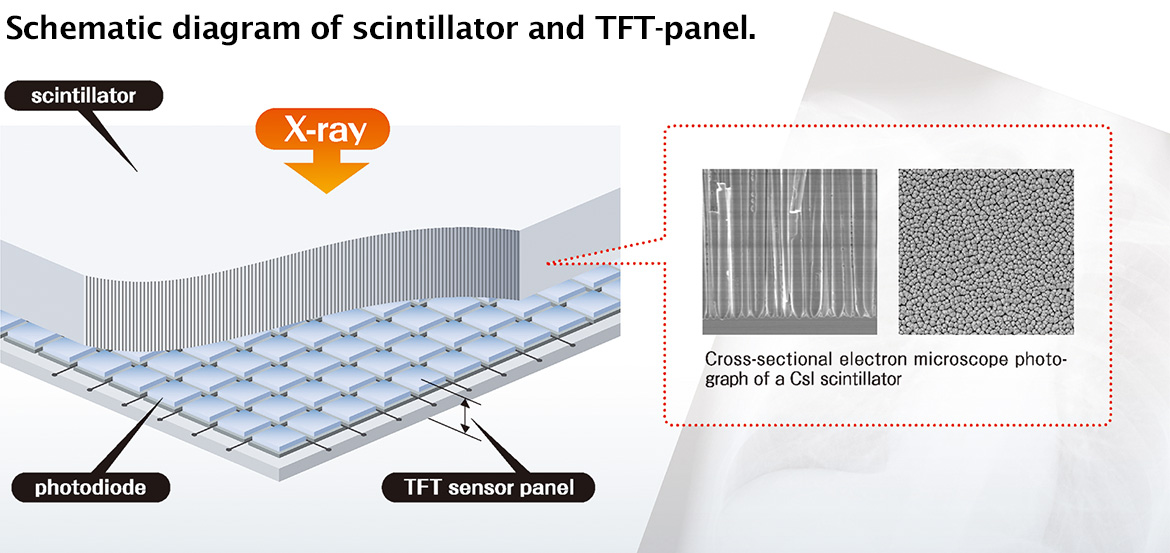

Self-developed and self-manufactured high-DQE CsI model
We developed and manufactured the detector internally including the scintillator, adopting CsI with excellent DQE for the scintillator, and achieved a superior DQE performance using column crystal technology. This makes it possible to achieve high-quality diagnostic images with about half the X-ray dose of CR, reducing the exposure risk to patients.

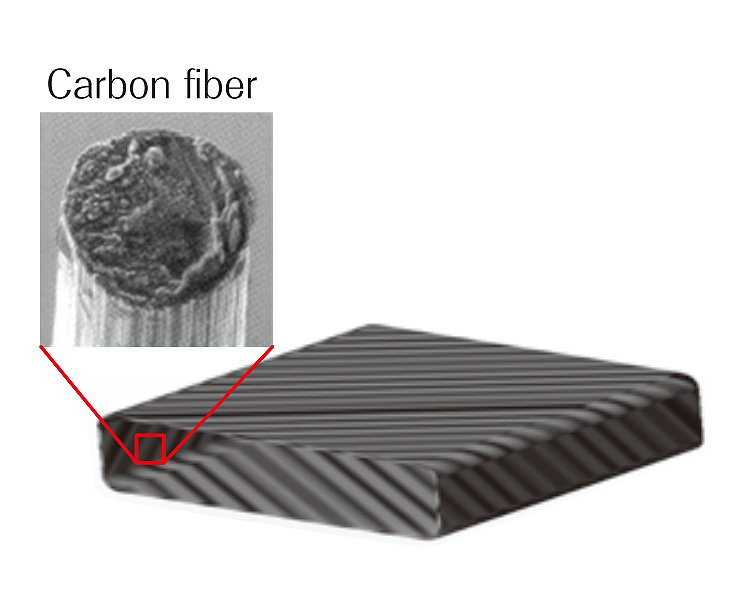

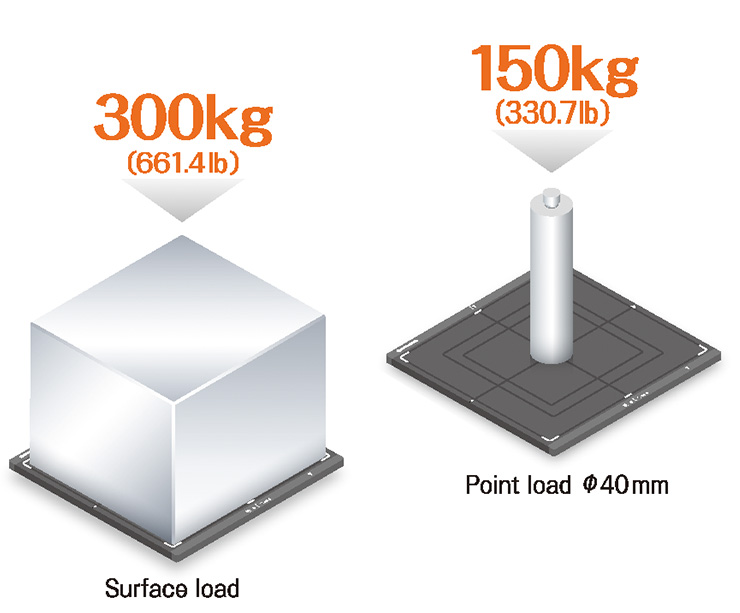

Combination of lightweight design and durability
To protect the detector from various daily impacts and loads, we adopted a lightweight robust monocoque carbon housing. We reduced the weight to 2.6 kg while maintaining high durability. The load tolerance allows a surface load of 300 kg and a point load of 150 kg. Also, the water resistance rating is IPX6, and the structure prevents the detector from damage due to penetration of blood or urine.

Long-life battery
This product is the first portable DR using a Lithium-ion capacitor, and has received attention in the environmental, energy, and many other fields. It is safer than Lithium-ion secondary batteries and is in no danger of firing due to overcharging or drop impact. Also, the Lithium-ion capacitor and the power saving technology have reduced the charging time to 30 minutes and eliminated the need for battery replacement.

DETAILED DESCRIPTION
TECHNICAL SPECIFICATIONS
ACCESSORIES
RELATED FILES
VIDEO

Self-developed and self-manufactured high-DQE CsI model
We developed and manufactured the detector internally including the scintillator, adopting CsI with excellent DQE for the scintillator, and achieved a superior DQE performance using column crystal technology. This makes it possible to achieve high-quality diagnostic images with about half the X-ray dose of CR, reducing the exposure risk to patients.

Combination of lightweight design and durability
To protect the detector from various daily impacts and loads, we adopted a lightweight robust monocoque carbon housing. We reduced the weight to 2.6 kg while maintaining high durability. The load tolerance allows a surface load of 300 kg and a point load of 150 kg. Also, the water resistance rating is IPX6, and the structure prevents the detector from damage due to penetration of blood or urine.

Long-life battery
This product is the first portable DR using a Lithium-ion capacitor, and has received attention in the environmental, energy, and many other fields. It is safer than Lithium-ion secondary batteries and is in no danger of firing due to overcharging or drop impact. Also, the Lithium-ion capacitor and the power saving technology have reduced the charging time to 30 minutes and eliminated the need for battery replacement.

DETAILED DESCRIPTION

Self-developed and self-manufactured high-DQE CsI model
We developed and manufactured the detector internally including the scintillator, adopting CsI with excellent DQE for the scintillator, and achieved a superior DQE performance using column crystal technology. This makes it possible to achieve high-quality diagnostic images with about half the X-ray dose of CR, reducing the exposure risk to patients.

Combination of lightweight design and durability
To protect the detector from various daily impacts and loads, we adopted a lightweight robust monocoque carbon housing. We reduced the weight to 2.6 kg while maintaining high durability. The load tolerance allows a surface load of 300 kg and a point load of 150 kg. Also, the water resistance rating is IPX6, and the structure prevents the detector from damage due to penetration of blood or urine.

Long-life battery
This product is the first portable DR using a Lithium-ion capacitor, and has received attention in the environmental, energy, and many other fields. It is safer than Lithium-ion secondary batteries and is in no danger of firing due to overcharging or drop impact. Also, the Lithium-ion capacitor and the power saving technology have reduced the charging time to 30 minutes and eliminated the need for battery replacement.
