CARDIOVIT MS-2015
MANUFACTURER : SCHILLER AG
The ECG system CARDIOVIT MS-2015 is a lightweight, portable and compact ECG system with 10,4’’ high resolution, color touch screen that accompanies you wherever you go. It is designed to be easy to be used while ensuring high quality ECG data & optional Spirometry data
DETAILED DESCRIPTION
TECHNICAL SPECIFICATIONS
ACCESSORIES
RELATED FILES
VIDEO

The ECG system CARDIOVIT MS-2015 is a lightweight, portable and compact ECG system with 10,4’’ high resolution, color touch screen that accompanies you wherever you go. It is designed to be easy to be used while ensuring high quality ECG data & optional Spirometry data.

Advanced diagnostic tools provides highest quality ECG analysis and the user friendly operation allows you to concentrate entirely on the diagnosis and treatment.

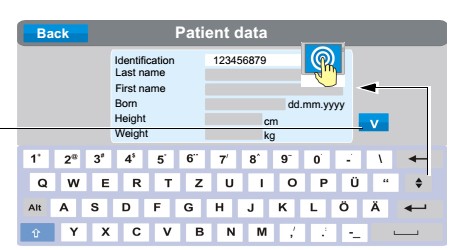

Patient data entry

Patients data details is succeeded through the on-screen touch alphanumeric keyboard.

ECG software

Full disclosure: the possibility to store up to 350 recordings, 12-lead, 4-minute ECG in order not to miss even one arrhythmia.

16- lead ECG analysis software: the advanced algorithm from Schiller can analyze up to 16 leads simultaneously which already reflects newly updated guidelines and recommendations for ECG interpretation. The 16-lead analysis is recommended especially to adults that suffer from chest pain. The acquisition is done through an optional 14- lead cable thus the data are based on real measurements and not only calculations.

Interpretation software “C”: the interpretation “C” software from Schiller offers a comprehensive diagnosis tool to the user to evaluate quickly and reliable adult and children ECG.

CCAA diagnosis software:  Schilller in cooperation with Professor Hein J. Wellens, MD, developed  the optional Schiller Culprit Coronary Artery Algorithm that can be used in the emergencies or outside the hospital whereas a fast decision must be made when the patient fills a chest pain. The software is the only one that indicates the occlusion site in the coronary artery indicating even the size of the are at risk!

Thrombolysis Recommendation software: This unique optional software gives indication about the advisability of using thrombolysis in case of cardiac ischemia. This additional information is especially important for patients with chest pain.

Automatic preview

The ability to preview the ECG before printing, reduces the need of printing as a result to reduce operational costs.

Spirometry

CARDIOVIT MS-2015 is the next generation of spirometry for a complete spirometry examination that includes the measurements FVC, SVC, MVV and their sub parameters.

Also, with the built-in diagnosis software the user is ready to provide directly a full report to the patient.

Additionaly, the user can do a “Pre” and a “Post” examination in order to report the effects of a medication that has been administrated to the patient

Finally, It is available with two sensors which comply with the latest standard of ATS/ERS: the SP-250 that does not need any volume calibration nor cleaning-disinfection and it is immediately available to be used to the next patient and the SP-260 that need periodically calibration and easy cleaning – disinfection.

All exams are saved in the same memory with ECG thus the user has the full report for both examinations

Printing

Due to the buit-in twelve channels, high resolution, printer, the user is always ready to print the ECG in real time either through the manual mode or either through the automatic mode.

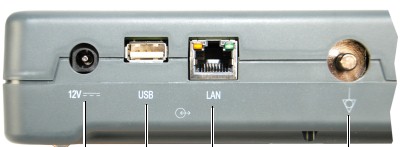

Always connected

As the device has built-in LAN ports, it easier to be connected to any network, local with a PC or and to a hospital. Thus, it offers Bi-directional communication with the dedicated from Schiller software SEMA 3 or / and EMR/HIS systems, that makes it easier access to data for immediate transfer of ECG and Spirometry final reports. Additionally, through the optional GSM port, the device is ready to transmit ECG examination to the dedicated software SEMA all over the world. Finally, through the USB port, the user can transfer any examination from the memory as a PDF file to a USB stick.

Display1042 x 768, 15’’ color touch screen, 12- lead

Filters: Power supply filter , myogram filter, SSF (Schiller Smoothing Filter), SBS (Schiller Baseline Stabilization).

Sampling frequency: 4.000 Hz

Power supply & battery: external medical grade supply. It can operate with battery up to 2 hours or for 80 recordings in auto mode. 3 hours for a full charge of the battery.

Recorder: high resolution, twelve (12) channels recording to a thermal printer more than 200mm (A4).

Interface: wired (LAN) and wireless (WIFI) network (optional), GSM (optional), USB

Memory: up to 350 ECG recordings.

Weight: approx. 3.3 kg

Dimensions: 359 x 282 x 58 mm

Standards: complies with IEC/EN 60601-2-25 IEC/EN 60601-1, IEC/EN 60601-1-2

Accessories that are included:

  • 10-lead ECG cable
  • suction /extremity electrodes
  • thermal paper
