EEG SYSTEM TRUSCAN EEG
MANUFACTURER :
PRODUCT CATEGORY :
SPECIALTIES : Neurology
  • Compact headbox with wireless and ambulatory options
  • Battery Operation / Optical Isolations
  • Intuitive "Dashboard" interface
  • Always On Impedance Indications
DETAILED DESCRIPTION

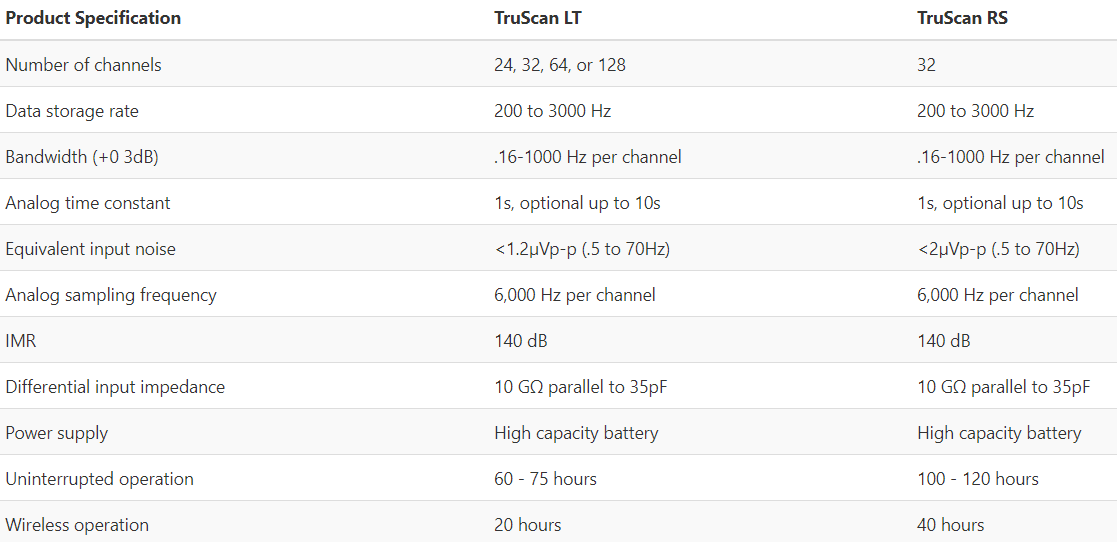

TECHNICAL SPECIFICATIONS
ACCESSORIES
RELATED FILES
VIDEO

Battery Operated
Offering the highest signal quality possible and lasting months on a single charge, Deymed systems significantly reduce artifacts and outside noise by running 100% on batteries.

Wireless Use
In wireless mode the amplifier can record for up to 20 hours on a singe charge. Wireless range of 100 meters from the base system for maximum patient comfort and freedom to move.

Intelligent Charging
Deymed’s new ultra-low capacitance induction charging keeps the batteries full when the system is not in use. This ensures the highest quality signal is possible with full battery operation during sensitive neurophysiology tests.

Optical Isolation
Optical isolation greatly improves signal quality and patient safety. This feature combined with long-lasting battery operation, offers the best-in-class technology for neurophysiological recordings.

Click N’ Go System
Easily detach your system from the cart with a single click and be on-the-go with a laptop. You are no longer forced to choose between a hospital cart or a portable system. You can now have both in one.

Always on Impedance
Always-on impedance monitoring displays impedances during recording and has alerts to ensure electrodes are in-range at all times. The values are saved to the EEG file for post quality-assurance review.

Explorer Keyboard
The TruScan Explorer Keyboard is a simple yet important innovation for routine EEG/Video review. The dedicated keyboard dramatically improves the speed and comfort of browsing long-term EEG recordings with video by eliminating tiresome overuse of a mouse. The dedicated keyboard includes all standard EEG review controls, including sensitivity, montage changes and almost all on-screen settings at the click of a button. Two large scroll-wheels allow for easy forward and back control over HD video as well as additional video speed and page advance buttons. Quick-insert text annotation shortcuts and reporting controls are also included.

TruScan Acquisition

  • Intuitive Dashboard interface
  • Pre-set text markers for quick insert
  • Integrated patient database and HL7 (optional)
  • On-screen always-on impedance monitor
  • Visual drag and drop custom montage creation
  • View live data and review data with split screen
  • Programmable photo-stim setup with pre-sets
  • P300, VEP and Neurofeedback modules
  • Patient remote alarm and event trigger
  • Live HD video display

TruScan Explorer

  • Full set of review tools including Brain Mapping
  • Export EEG with included viewer to flash drive
  • Interpretation editor with custom text pre-sets
  • Database with un-interpreted To-Do list
  • Full search and sortable patient list
  • EDF, LORETA, Matlab and Excel output of data
  • Spectral Analysis overlay of multiple segments
  • Common controls via TruScan control keyboard
  • Synchronized frame by frame video with EEG
  • EP epoch generator with full post-analysis

HD Video Monitoring

  • HD PTZ camera for close-up and full view
  • Side-by-side dual view capture
  • Video trimming to save hard disk space
  • Clear night time view with Infra-red lamp
  • Adjust light sensitivity for Day / Night detection
  • High quality MPEG-4 (h.264) video
  • Remote Network HD video / EEG Viewer
  • Multi-room monitoring (4 beds per viewer)
  • Mounts to wall or Hospital cart for portability
  • Wide-band microphone with high sensitivity

IR Night Lamp
High-power IR lamp that can light up the entire room with in-direct positioning, ie by pointing the lamp at the ceiling and letting the light bounce off the walls, so the light source is not visible to the patient.

  • Does not interrupt the patient’s sleep
  • IR light optimized for the camera, for more natural looking image
  • Allows video recording even in complete darkness

HD Network Camera with PTZ
Full HD network video camera that already compresses the video in the camera, so no internal capture card is required, which minimizes the hardware requirements on the PC. Video can be streamed via the network to any review station or via a UDP viewer station for up to four EEG/Video stations on a single screen.

Full Patient View HD Camera

  • Wide-angle HD camera for optimal view of patient
  • Adjustable focus and zoom
  • Automatic signal synchronization
  • Can be attached to a wall or mounted on cart

Advanced HD Video HUB
The HD Video Hub greatly simplifies a typically complex dual-video and audio capture, as well as integrating an microphone and ambient light sensor. combines and synchronizes video from up to two HD or SD camera sources. The hub also integrates a wide-band high-sensitivity microphone as well as an integrated ambient light sensitivity sensor for automatic night and day mode detection. The day/night sensitivity level can be adjusted in software.

  • Dual-Video synchronization
  • Built-in high-sensitivity microphone
  • Ambient Light sensitivity sensor for automatic night/day detection
  • Dual camera capture with HD-PTZ close-up on face and wide-view angle

LED Photo-stim Lamp
Powerful photic stimulation lamp with two switchable colors, red and white. The red light makes it possible to use special glasses that greatly eliminates the flash for the operator and gives more options for evoking a seizure. The red light has a mean wavelength of 660nm and white with a color temperature of 6500K

  • Adjustable position
  • Two types of light – white and red
  • Signal synchronization with freq. up to 60Hz
  • Full software control
  • Inserts automatic markers into the signal
  • Cart and desktop mountable version options

EEG Headbox
TruScan headboxes use state-of-the-art technology offering the highest signal quality combined with advanced options such as click-n’go wireless operation and ambulatory recording. The Click N’Go function allows universal use of the headbox in clinical, ambulatory and wireless LTM scenarios. Battery operation, intelligent charging and optical isolation ensure minimal interference.

  • Detachable from cart arm
  • Multiple day battery operation
  • Optical cable isolation when on arm
  • Continuous Impedance measurement
  • Wireless and/or SD card recording options for all headboxes
  • DSP processor and SD card for built-in for Ambulatory use

Inteligent Charger
Intelligent Headbox Charger. The Intelligent charging is built into the rotating metal arm with the holder for the headbox. It charges the headbox batteries via inductive charging, ie without direct contact, which maintains the optical isolation and safety benefits of battery operation as well as allowing the headbox batteries to be charged when not in use.

Accessories Basket
On the arm of the headbox holder there is a removable container basket that can be used to keep recording supplies or other needed materials for the operation of the device. If the basket is removed, there is a tray underneath that can also be used to place items on. Multiple accessory baskets can be purchased, allowing for a quick change-out, allowing pre-organized recording items to be planned out and ready each day.

TruScan Explorer Keyboard
A unique innovation in the EEG field, the TruScan Explorer Keyboard was developed to speed up and streamline the review of EEG recordings with video. Ergonomically-designed buttons include all common features available on one click, minimizing the need for complex use of the mouse. The large scroll buttons significantly speed up the scrolling and ease the orientation in a long-term recording. Shortcuts are also available for fast text input and report creation controls.

  • New Innovation
  • Quick and efficient review
  • Easy to take notes and jump around in file
  • Inserting notes
  • Preset functions
  • Limits overuse of the Mouse

Ergonomic PC Keyboard
Ergonomic sliding PC keyboard including full Numeric keyboard for fast patient entry and report writing. Thanks to the pull-out design, the keyboard is always at hand, but it does not interfere with the exam. Optionally, a disinfectable keyboard can be supplied.

  • Good ergonomics
  • Easy to write reports
  • Retractable keyboard shelf
  • Ability to easily disinfect (optional model)

Acquisition and Explorer Software
TruScan Acquisition was designed specifically for recording of the EEG, including a full-screen and minimized impedance panel that is visible at all times. Event markers and patient notes can be entered during the exam, as well as a separate panel for look-back functionality, to see and annotate previously recorded signal. All recording parameters can be quickly changed at the click of a mouse from the main screen, without needing to open additional setting screens.
TruScan Explorer is a full EEG review software package with numerous tools and features that allow for quick and efficient review of routine and long-term EEG. All functions can be controlled by mouse or now with the new dedicated Explorer keyboard, you can navigate and review even faster, by utilizing the large scroll wheels and pre-set buttons. Brain mapping and spectral analysis is included, as well as export of data for review in other packages.

Large Full-HD LCD Monitor
The large, 22-inch Full-HD display offers a detailed view of the recording and all the software features. Of course, it is possible to adjust the height of the monitor and the possibility of turning it in two axes for comfortable operation of the device. There are also larger 24 “and 27” monitors available.

  • Adjustable swivel display – for good workplace ergonomics
  • Hi-resolution with built-in speakers
  • Larger size options available

Laser Printer
High-quality patient reports can be generated with the included black&white laser printer. Options include wireless version allowing printer to be located away from medical cart.

Isolation Power Supply
Medical grade built-in Isolation Transformer that meets the highest medical safety standards. On/off switch with LED indicators for status. Non-patient Grounding plug included on side.

Powerful and Silent PC
The Deymed integrated computer is optimized for use in healthcare. It is safely stored on a mobile construction that ensures easy mobility. It uses reliable and certified components with optimized power consumption, ensuring high reliability, durability and low power consumption. The computer is stored in an all-metal construction and is equipped with passive cooling of the processor. Thanks to the absence of a cooling fan, the system runs virtually silent, allowing the exam room to be undisturbed. Another advantage of the silent computer is the lack of dust and dirt intake into the computer, due to the sealed case. This protects the computer components which are left uncontaminated and therefore last much longer.

  • Integrated to mobile cart
  • Silent PC made specifically for healthcare
  • High performance processor and large HDD
  • Fan-less silent PC with no intake of dust for longer PC life

Isolated Network & HL7
Isolated network connection on back of cart allows a network cable to be safely connected while maintaining the required 5kV electrical isolation for patient safety. Network connection is up to gigabit speed for fast transfer of patient video and data to a central server.
HL7 connections available with tight integration to TruScan software without the need to open a secondary program with worklist or patient directory. Custom HL7 mappings possible due to use of translation engine.

Headbox Options

  • TruScan LT Wireless
    The TruScan LT Wireless EEG system can be used for Ambulatory, Wireless, Long Term Monitoring and standard clinical use.
    Connected or Ambulatory Mode: In Connected or Ambulatory mode, the TruScan LT system can record up to 45 hours on a single charge.
    Wireless Mode: In Wireless mode, the TruScan LT system can record for up to 30 hours on a single charge.
    The TruScan LT has a wireless range of 100 meters from the base system. With additional wireless signal extenders this range can be extended to 300+ meters.
    When a patient is out of wireless range, the TruScan LT will continue to record to internal memory and will automatically re-sync the backup data when the patient comes back into the wireless communication range.
  • TruScan RS
    The compact TruScan RS Wireless EEG system can be used for Ambulatory, Wireless and Long Term Monitoring uses.
    Connected or Ambulatory Mode: In Connected or Ambulatory mode, the TruScan RS system can record up to 90 hours on a single charge.
    Wireless Mode: In Wireless mode, the TruScan RS system can record for up to 40 hours on a single charge.
    The TruScan RS has a wireless range of 100 meters from the base system. With additional wireless signal extenders this range can be extended to 300+ meters.
    When a patient is out of wireless range, the TruScan RS will continue to record to internal memory and will automatically re-sync the backup data when the patient comes back into the wireless communication range.
  • TruScan LT – 32
    32 Channels Headbox
    32x Single electrode connectors
    1x Easy connect Cap connector
    Online Impedance Check
    Battery operated – removable batteries
    Optional Holter recording to SD card
    Compact dimensions 90 x 47 x 140 mm
  • TruScan LT – 24
    24 Channels Headbox
    24x Single electrode connectors
    1x Easy connect Cap connector
    Online Impedance Check
    Battery operated – removable batteries
    Optional Holter recording to SD card
    Compact dimensions 90 x 47 x 140 mm
