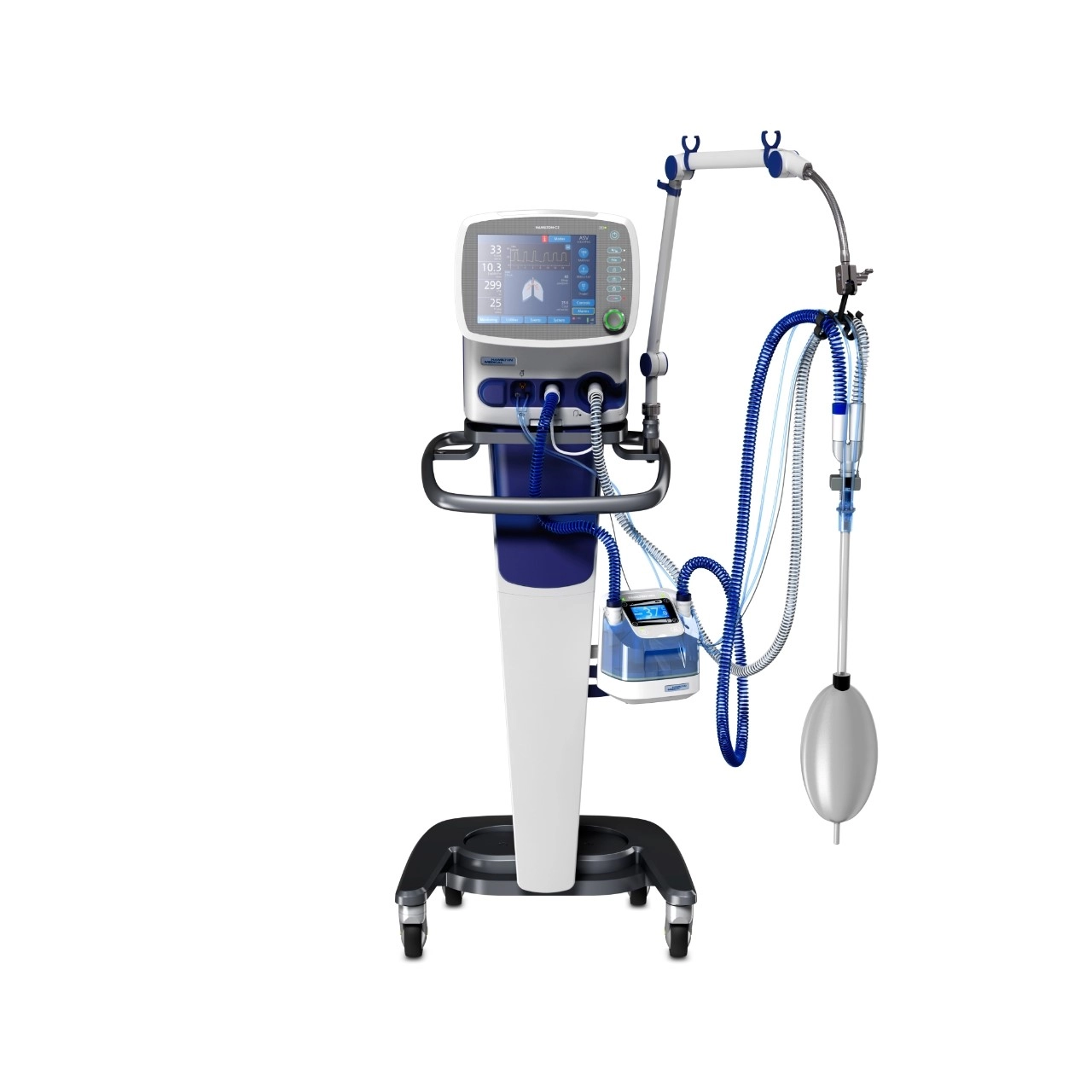

HAMILTON-C3

The HAMILTON-C3 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation (ASV). The HAMILTON-C3S edition includes the optional INTELLiVENT-ASV mode. This unique mode takes the proven concepts of ASV one step further: INTELLiVENT-ASV automatically controls the patient's ventilation and oxygenation based on targets set by the clinician and on physiologic input from the patient.

The HAMILTON-C3 includes the optional Protective Ventilation Tool (P/V Tool Pro) to assess recruitability. The P/V Tool also provides an easy and repeatable method for performing recruitment maneuvers.

The HAMILTON-C3 optionally provides an integrated high flow oxygen therapy mode with a flow of up to 80 l/min.

The HAMILTON-C3 offers:

Adult, pediatric and neonatal ventilation
Independence from air supply with integrated ultra-quiet turbine O₂ supply either from high or low O₂ source
Over 7 hours of battery operating time
Automated control of the patient’s ventilation and oxygenation with INTELLiVENT-ASV
Protective Ventilation tool for lung assessment and recruitment via P/V Tool Pro
Intelligent automated ventilation via Adaptive Support Ventilation (ASV)
Advanced invasive ventilation modes such as (S)CMV, SIMV, APV_CMV/(S)CMV+, APV_SIMV/SIMV+, PCV+, PSIMV+ & SPONT
Synchronized non - invasive ventilation modes such as NIV & NIV-ST
Bilevel ventilation modes such as DuoPAP & APRV
Adaptive pressure ventilation such as APVcmv and APVsimv
Adjustable resistance compensation for endotracheal tubes TRC
Demand-flow nCPAP & nCPAP-PS ventilation modes (optional)
High flow oxygen therapy (optional)
Automatic response (leak compensation) to varying leaks and adaption of trigger sensitivity in all modes by IntelliTrig
Guaranteed rate ventilation by PSync
1 in, TFT color 1280 x 800 pixel, touch screen with dimmable backlight
Display of 48 monitoring parameters
Visual representation of ventilator dependency and weaning process, grouped into oxygenation, CO₂ elimination, patient activity, via Vent Status
Real-time visualization of the lungs with representations of tidal volume, lung compliance, resistance, and patient activity via Dynamic lung
Graphic display of target and actual parameters for tidal volume, frequency, pressure, patient activity, and minute ventilation via ASV target graphics
Real-time waveforms for Paw, Flow, Volume, Ptrachea, CO_2,SpO₂
Loops P-V, V-Flow, P-Flow, V-CO2 & trends up to 72 hours (optional), INTELLiVENT-ASV panels
Storage and display of up to 1,000 events with date and time via Event log
Integrated on-screen help for troubleshooting alarms
Volumetric mainstream capnography, sidestream capnography (optional)
Various interface connections such as USB, RS-232, nurse call(optional), CO₂(optional), SpO₂(optional)
Trolley with Humidifier support, cylinder holder
Tubing support arm
Standards: IEC 60601-1:2005/A1:2012, IEC 60601-1-2:2007, ISO 80601-2-12:2011 + Cor.:2011, CAN/CSA-C22.2 No. 60601-1:14, ANSI/AAMI ES60601-1:2005/(R)2012

HAMILTON-C3

The compact high-end ventilator
