  • White extruded two-material PVC and injected ABS. 10/10 sheet steel base with epoxy coating.
  • 4 colours of identification strip: white, red, azure blue, salmon.
  • Wall fixing: recessed holes for hooking at the back of the device.
  • Light source: straight fluorescent tubes, “daylight” type, colour temperature > 5500 degrees Kelvin.
  • Diffuser screen: acrylic, semi-translucent diffuser, thickness 3 mm.
  • Lighting intensity: homogeneous (DIN standard 6856, central point 3000 CD/ sq. m).
  • Film holder: treated steel rollers, non-wearing and non-loosening. Transversal nylon wire adjustable by cursor.
  • Lighting control: bipolar switch (I) with incorporated indicator light or new electronic dimmer (V).
  • Reflector (only on HF model)
  • Panel: extended or separate.
  • Power supply cable: standard, 2 poles + earth.
  • Mains electricity supply: 230V, 50Hz (for other voltages, consult us).



Optional:

  • Stabilized 30 kHz High Frequency lighting (only on models NHQ1, NHQ2, NHQ3, NHQ4),
  • Mobile stand,
  • Inside halogen spot light.

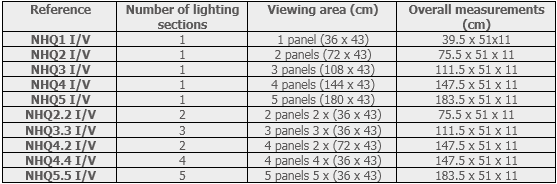

QUAL’X series includes:
