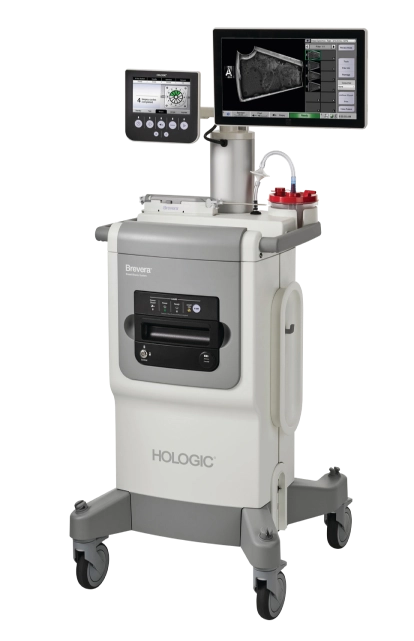

Stereotactic Breast Biopsy System, BREVERA
MANUFACTURER : HOLOGIC

Brevera breast biopsy and tissue resection system with CorLumina imaging technology performs vacuum-assisted breast biopsy with simultaneous irradiation, real-time imaging and tissue sampling.

DETAILED DESCRIPTION
TECHNICAL SPECIFICATIONS
ACCESSORIES
RELATED FILES
VIDEO

The Brevera breast biopsy system with CorLumina imaging technology delivers. It’s the world’s first and only solution to combine vacuum-assisted tissue acquisition, real-time imaging, verification and advanced post-biopsy handling – all in one, integrated system. An intuitive user interface, real-time imaging, and automated specimen collection and separation work together to reduce procedure times by up to 25% or more. The Brevera breast biopsy system features a reusable device driver and disposable needles to provide new functionality, simplify storage, and improve waste management.

  • It has a Tungsten X-ray tube with a small focal spot size of up to 50μm and a current tube of 1mA to operate at low radiation levels and a KV range of at least 20-35 KV, to achieve high contrast in tissue samples.
  • Displays a maximum exposure of 10 mAs and 125 μm beryllium filtration.
  • The pixel size and output image are 20 μm and 12 bit respectively, while the active imaging area is 3.3 cm x 2.5 cm.
  • The console weight is 88 kg.
  • Cycle time is 8 seconds for acquisition, imaging and verification.
  • Display monitor is 15 inches (38.1 cm), W x GA (1366 x 768), with color LCD display and touchscreen.
  • Finally, the disposable needle specifications are 14 in L x 2 in W x 1.25 in H (35.6 cm x 5.1 cm x 3.2 cm).
