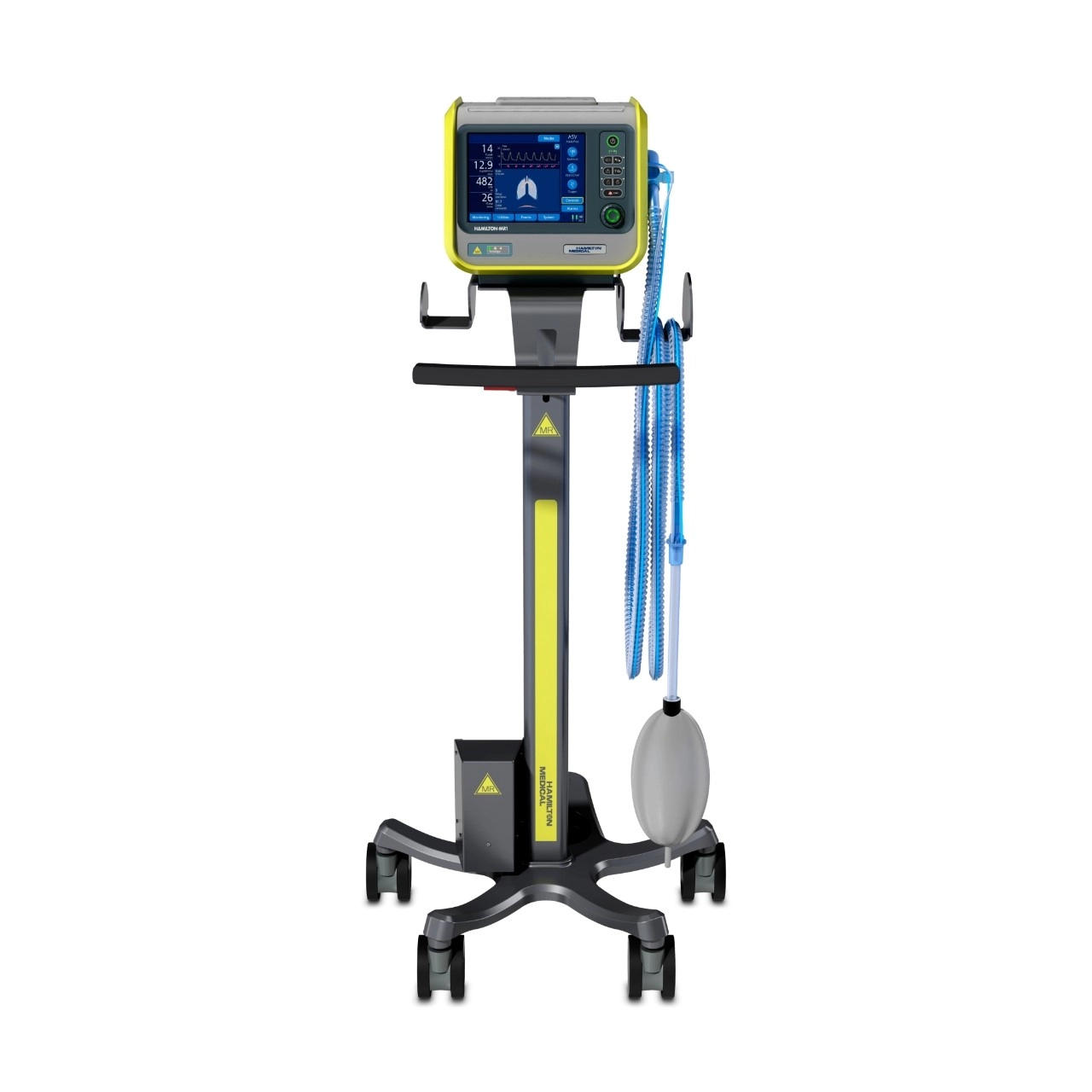

HAMILTON-MR1

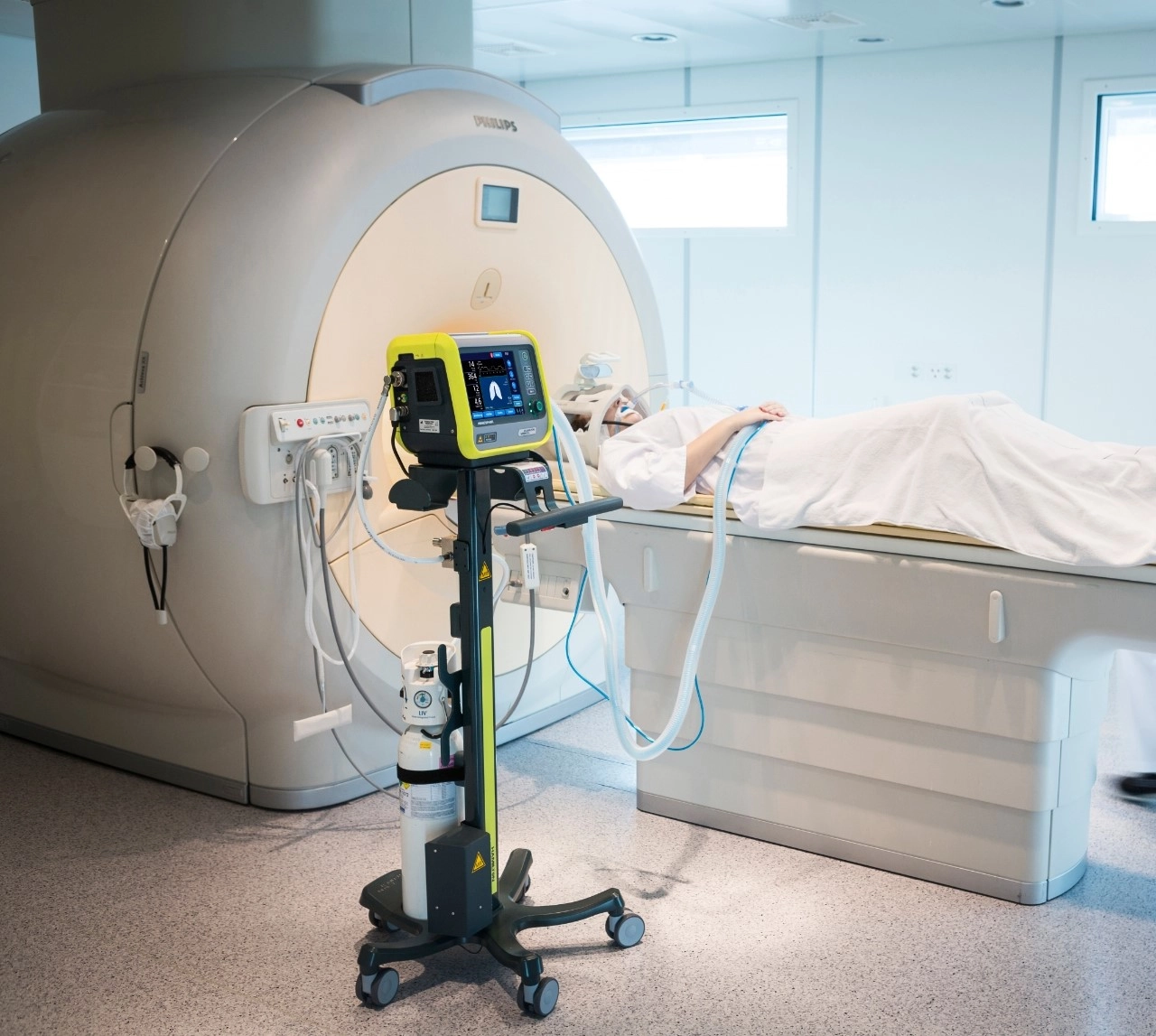

The fully featured ICU ventilator, HAMILTON-MR1, guarantees uncompromised continuous ventilation care from the ICU to the MRI scanner and back. Its reliability and high performance, with advanced lung-protective strategies and patient-adaptive modes, make the HAMILTON-MR1 the ideal choice for any critical care department that needs to transport ventilated patients to the MRI department.

The integrated high-performance turbine enables the HAMILTON-MR1 to be completely independent from compressed air. This reduces weight and saves space during intrahospital transport.

The HAMILTON-MR1 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV®).

The HAMILTON-MR1 offers:

MR Conditional (up to 50 mT)
Integrated TeslaSpy gaussmeter for continuously measures the static magnetic field, even when the ventilator is turned off

Adult, pediatric and neonatal ventilation
Independence from air supply with integrated ultra-quiet turbine (up to 260l/m for adult/pediatric and up to 40l/m for neonates)
Over 9 hours of battery operating time
Intelligent automated ventilation via Adaptive Support Ventilation (ASV)
Advanced invasive ventilation modes such as (S)CMV+, SIMV+, PCV+, PSIMV+ & SPONT
Synchronized non - invasive ventilation modes such as NIV & NIV-ST (optional)
Bilevel ventilation modes such as DuoPAP & APRV(optional)
Demand-flow nCPAP & nCPAP-PC ventilation modes (optional)
High flow oxygen therapy (optional)
Automatic response (leak compensation) to varying leaks and adaption of trigger sensitivity in all modes by IntelliTrig
Guaranteed rate ventilation by PSync
4 in, TFT color, backlit, touch screen display
Display of more than 30 monitoring parameters
Visual representation of ventilator dependency and weaning process, grouped into oxygenation, CO2 elimination, patient activity, via Vent Status
Real-time visualization of the lungs with representations of tidal volume, lung compliance, resistance, and patient activity via Dynamic lung
Graphic display of target and actual parameters for tidal volume, frequency, pressure, patient activity, and minute ventilation via ASV target graphics
Real-time waveforms for Paw, Flow, Volume, Capnograph (optional) & Plethysmograph (optional)
Loops P-V, V-Flow, P-Flow & trends up to 72 hours (optional)
Storage and display of up to 1,000 events with date and time via Event log
Compatibility of the pressure controlled modes (PCV+, PSIMV+, SPONT) with speaking valves via SpeakVave function
USB interface connections
Trolley with auto-lock brake and cylinder holder
Standards: IEC 60601-1, IEC 60601-1-2, ISO 80601-2-12, CAN/CSA-C22.2 No. 60601-1, ES60601-1

HAMILTON-MR1

Intelligent Ventilation from ICU to MRI
