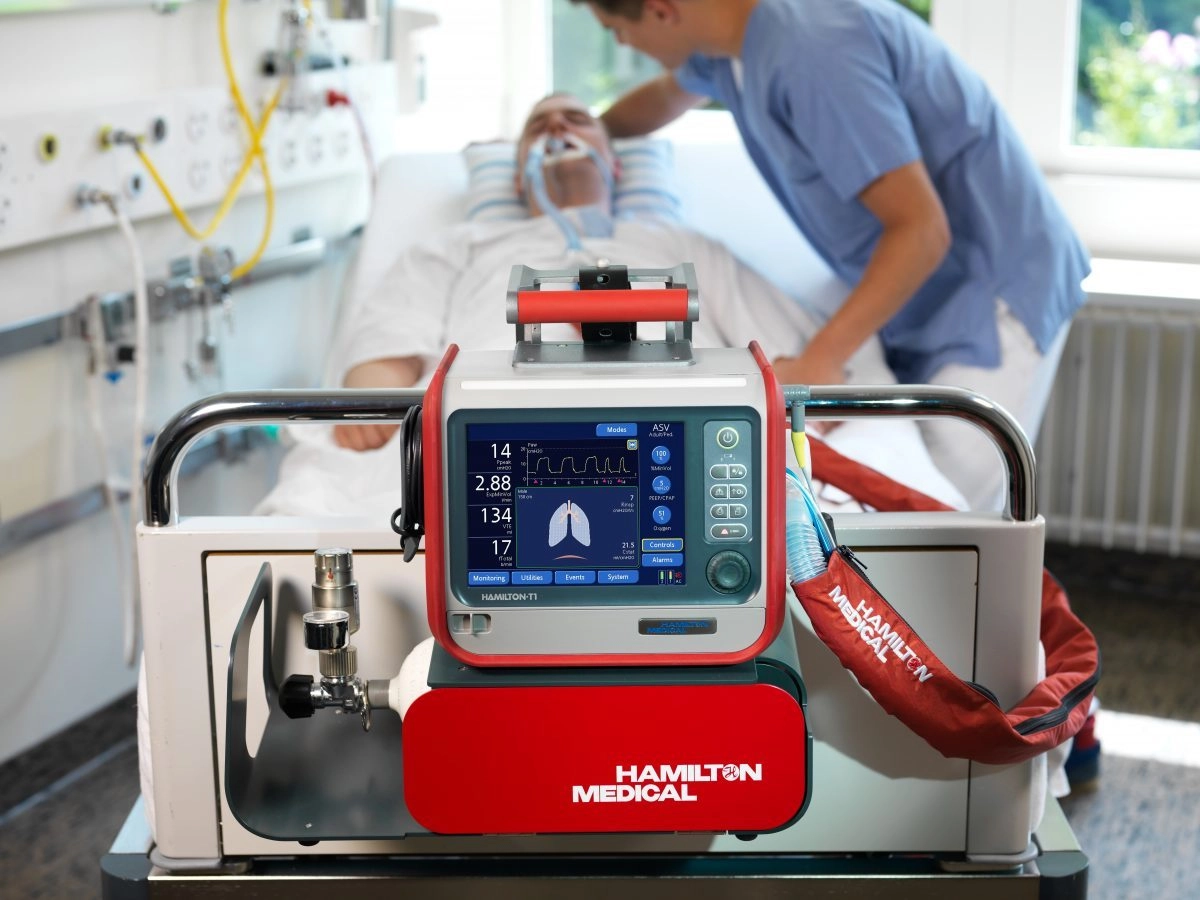

HAMILTON-T1

The HAMILTON-T1 combines for the first time the functionality of a fully featured intensive care unit ventilator with the compactness and ruggedness required for transport. This is why the HAMILTON-T1 enables you to provide optimal ventilation therapy to all patient groups during transport, from the neonate to the adult.

The integrated high-performance turbine enables the HAMILTON-T1 to be completely independent from compressed air. This reduces weight and saves space, and allows even noninvasively ventilated patients to be transported successfully across greater distances.

The HAMILTON-T1 includes Hamilton Medical's standardized Ventilation Cockpit user interface and the unique intelligent ventilation mode, Adaptive Support Ventilation® (ASV®).

The HAMILTON-Τ1 offers:

Performance of a fully featured ICU ventilator

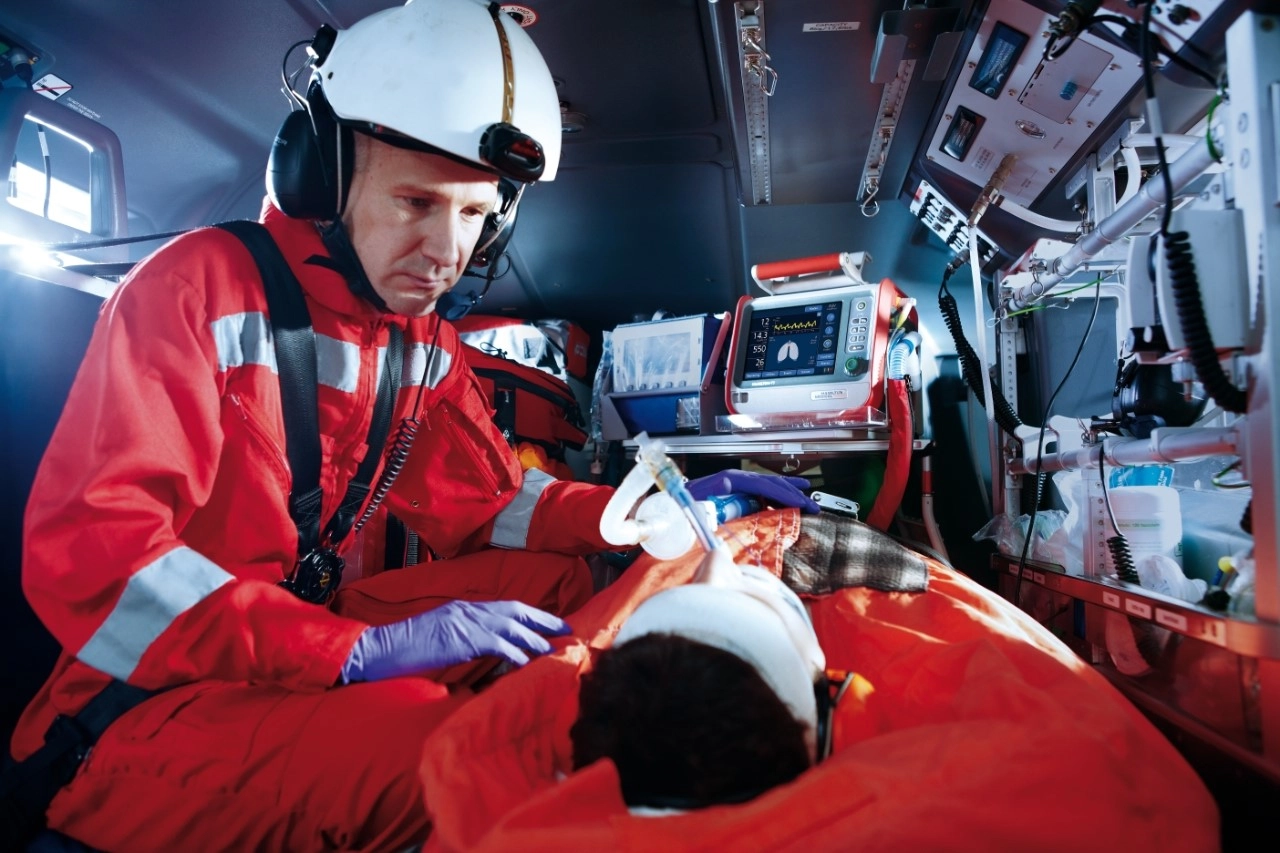

Approved for ambulances, helicopters, airplanes, and ships

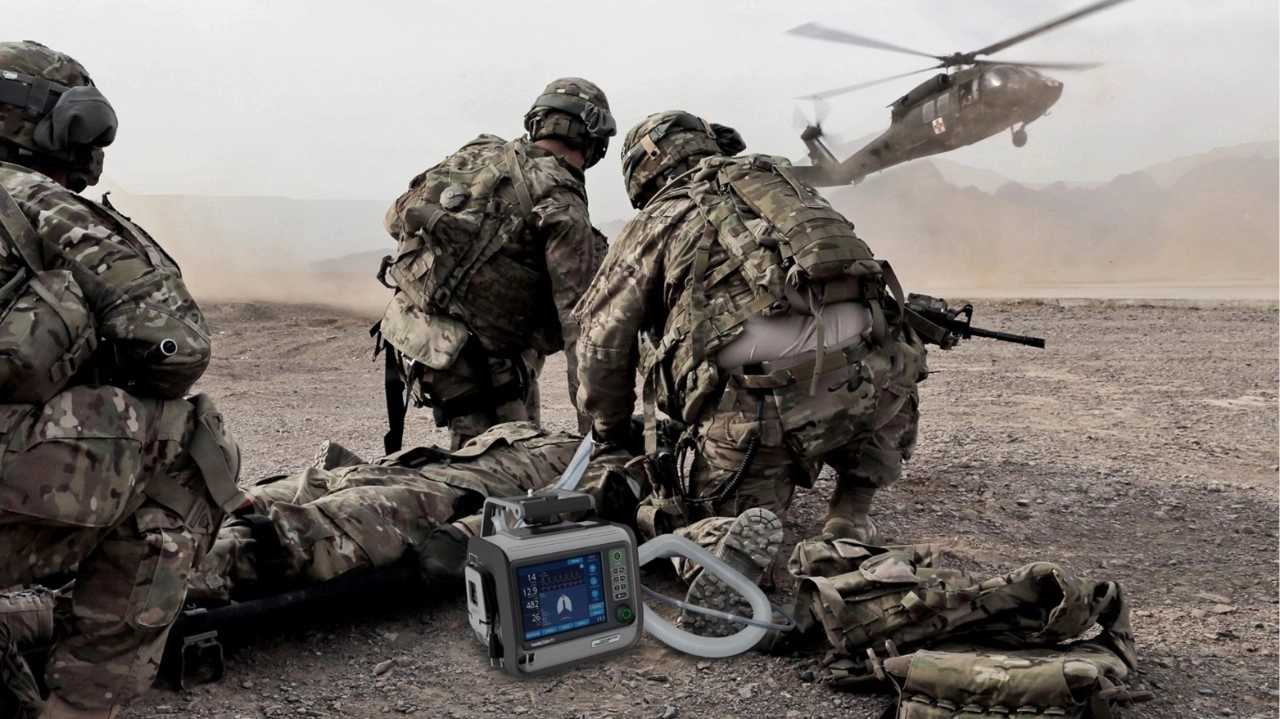

Special edition for military forces
Adult, pediatric and neonatal ventilation.
Independence from air supply with integrated ultra-quiet turbine (up to 260l/m for adult/pediatric and up to 40l/m for neonates
O₂ supply either from high or low O₂ source
Minimum size and weight of less than 7 kg
Over 9 hours of battery operating time
Intelligent automated ventilation via Adaptive Support Ventilation (ASV)
Advanced invasive ventilation modes such as (S)CMV+, SIMV+, PCV+, PSIMV+ & SPONT
Synchronized non - invasive ventilation modes such as NIV & NIV-ST (optional)
Bilevel ventilation modes such as DuoPAP & APRV (optional)
Demand-flow nCPAP & nCPAP-PC ventilation modes (optional)
High flow oxygen therapy (optional)
Automatic response (leak compensation) to varying leaks and adaption of trigger sensitivity in all modes by IntelliTrig
Guaranteed rate ventilation by PSync
4 in, TFT color, backlit, touch screen display
Display of more than 50 monitoring parameters
Visual representation of ventilator dependency and weaning process, grouped into oxygenation, CO2 elimination, patient activity, via Vent Status
Real-time visualization of the lungs with representations of tidal volume, lung compliance, resistance, and patient activity via Dynamic lung
Graphic display of target and actual parameters for tidal volume, frequency, pressure, patient activity, and minute ventilation via ASV target graphics
Real-time waveforms for Paw, Flow, Volume, Capnograph (optional) & Plethysmograph (optional)
Loops P-V, V-Flow, P-Flow, V-CO₂ & trends up to 72 hours (optional)
Storage and display of up to 1,000 events with date and time via Event log
Volumetric mainstream capnography, sidestream capnography (optional)
SpO₂ measurement (optional)
Compatibility of the pressure controlled modes (PCV+, PSIMV+, SPONT) with speaking valves via SpeakVave function (optional)
Various interface connections such as USB, RS-232, nurse call(optional), CO₂(optional), SPO₂ (optional)
Trolley with Humidifier support, cylinder holder (optional)
Tubing support arm (optional)
Multiple handles for various options (jet, ambulance, or bed rail mount)
HAMILTON-T1 carrying unit for bedside transport with O2 cylinder (optional)
Night vision function via NVG (optional)
Standards: IEC 60601-1, IEC 60601-1-2, ISO 80601-2-12, CAN/CSA-C22.2 No. 60601-1, ES60601-1, EN 794-3, EN 1789 for ambulances, EN 13718-1, RTCA/DO-160G for air transport, MIL-STD-461G control of electromagnetic interference
