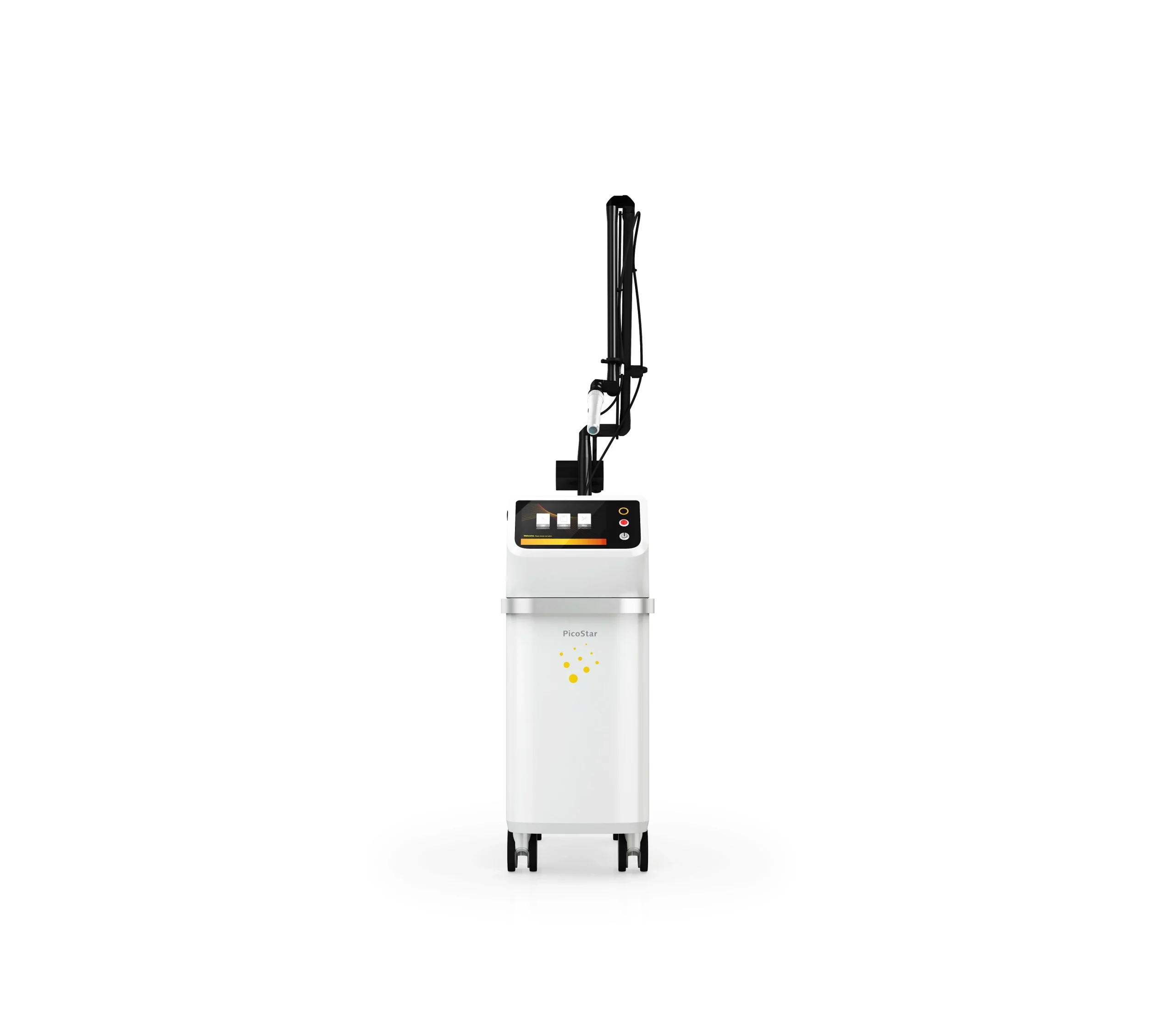

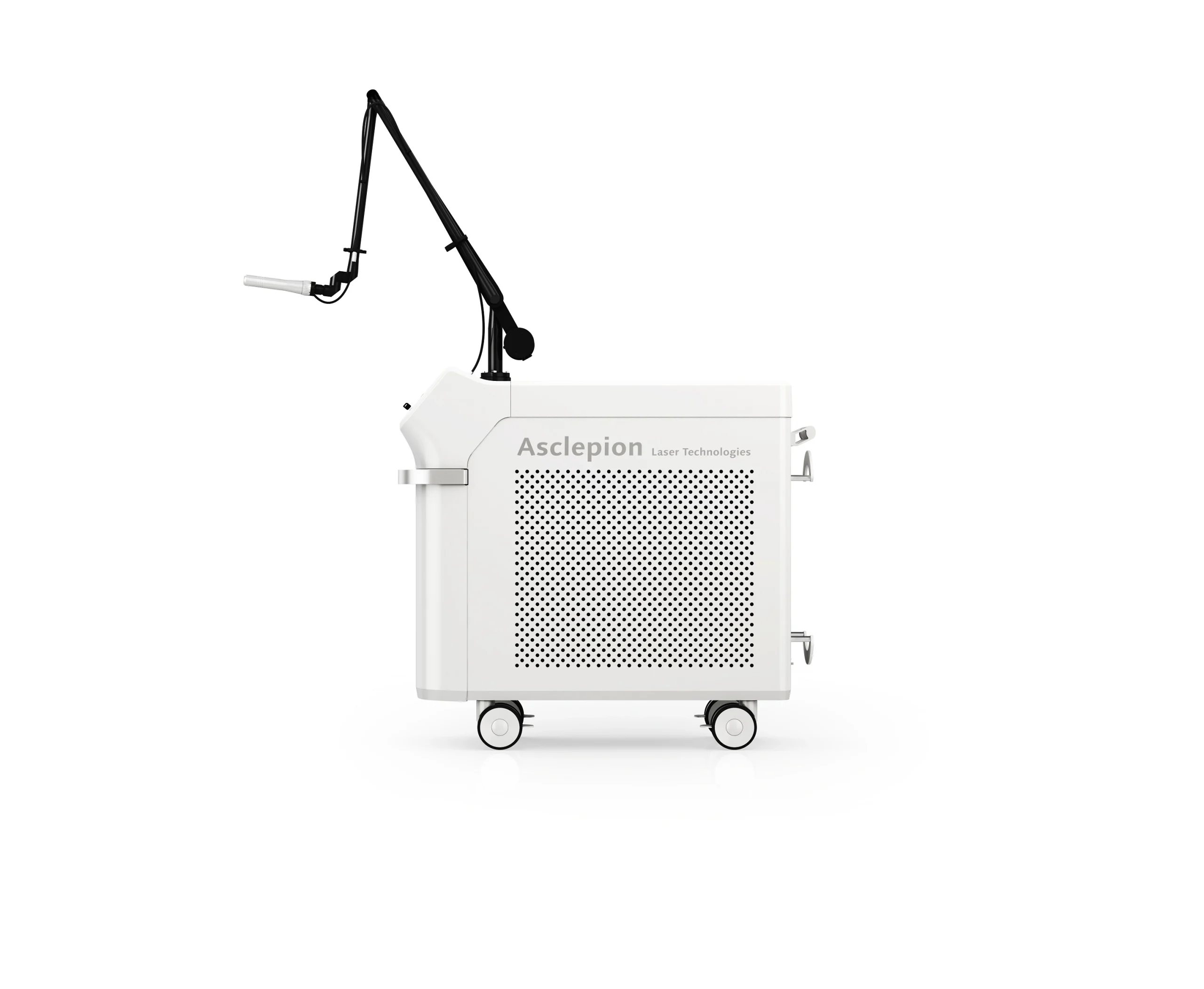

Laser PicoStar, which combines:
With PicoStar you can remove all colors, without scars, in a minimal number of conferences and with absolute security. You can also apply it to remove all pigment lessions (spots, facials, melasma).
Nd:YAG dual wavelength (1064/532nm)
Two wavelengths give physicians the flexibility to adapt treatments precisely to the patient’s needs and to a wide range of pigment colors (from darker colors to blue and red).
Highest energy and shortest pulses
The PicoStar uses the latest technology with the highest power to generate pulses below 300 ps for the most effective treatment of pigments and multicolored tattoos. The system can operate for a long duration with high speed and without the need of pre-pulses for the user. This makes it one of the fastest and most reliable PICO systems on the market. The ultra-short pulses allow bursting the pigment particles without any thermal side effects or scars. This increases patient comfort and providing greater flexibility and efficiency.

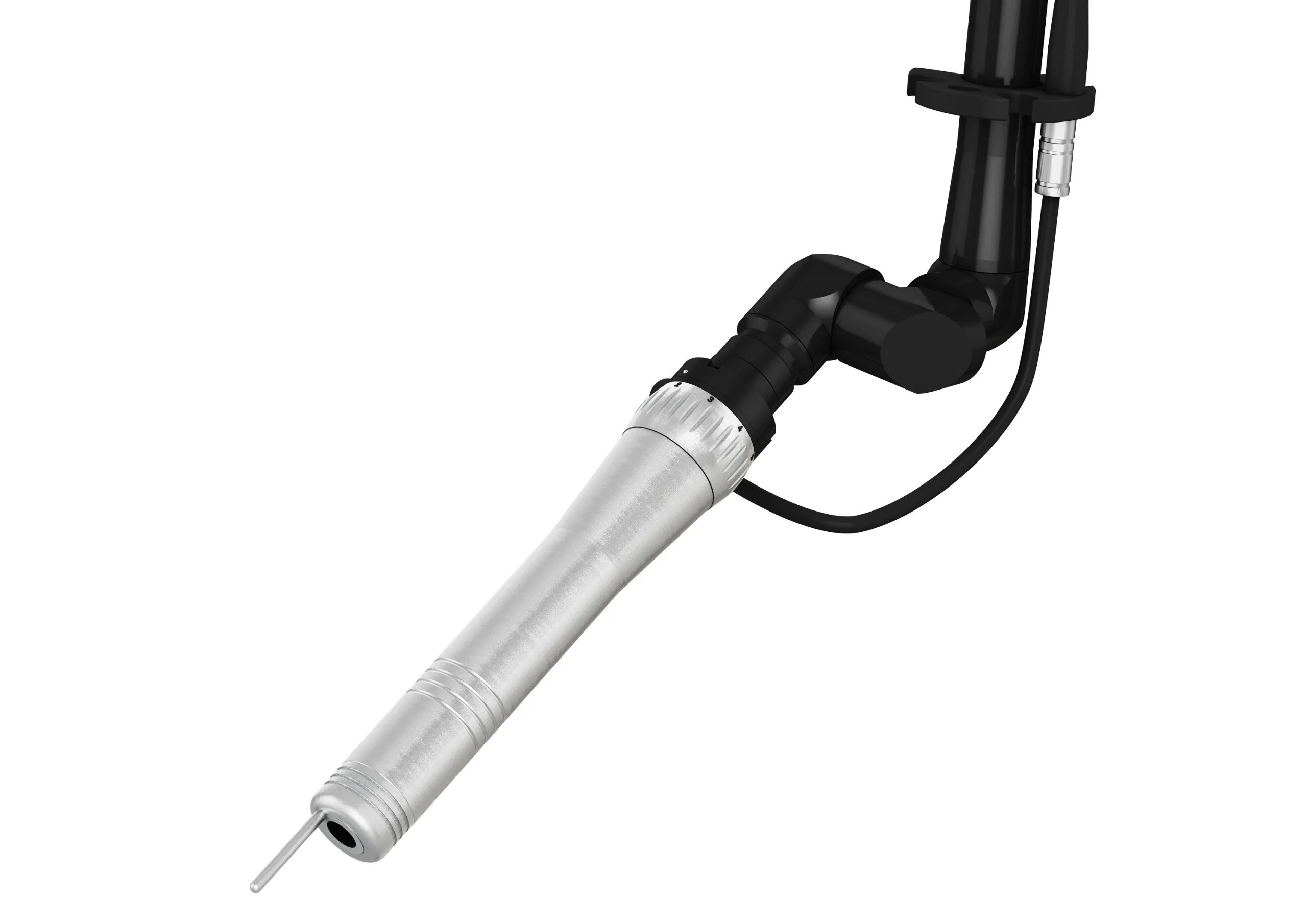

Zoom handpiece with different spot sizes
The PicoStar has an ergonomic, thin and light zoom handpiece. It is made of stainless steel for easy handling and cleaning. Thanks to a rotating ring on the handpiece, the spot size can be adjusted without changing the handpiece or tip. This offers you the flexibility to work on both larger and smaller areas with the maximum degree of precision.
Uniform beam profile and automatic spot detection
A special lens system creates a uniform spot without “hot spots” by distributing the laser energy in a perfectly way. This results in less pain and lower bleeding levels. The shape of the spot is designed to guarantee the optimum coverage of the treatment area with greater efficiency. The zoom handpiece with automatic spot detection allows flexible and easy adjustment for all applications and body regions. This ensures fast, safe and efficient treatment with a convincing result.
Touch screen and user-friendly interface
The PicoStar features a large, clear, sharp and easy to use 10.1” touch screen display. It has been completely redesigned and adapted to the needs of the user. The menu is suitable for both beginners and experts. The large buttons and icons offer good detectability and the dark background delivers a higher contrast and color brilliance. There is a clear highlighting of active elements through size and color change. Beginners can choose the indication, and have the corresponding parameters set automatically. Professional users can go directly into the work screen with all parameter settings, for a fast and effective treatment.
LASER Nd: YAG, class 4
WAVE LENGTH 532nm, 1064 nm
ENERGY Max. 800 mJ
POWER Max. 2.7 GW
PULSE DURATION 300 ps
FREQUENCY Max. 10 Hz
HEAD SIZES 2-5 mm (ST) 3mm; 5 mm (Flat-Top 532) | 10mm; 16mm (Flat-Top 1064) | 7×7 mm2 (MicroSpot PICO)
DIMENSIONS 42 x 116 x 106 cm (W x D x H)
WEIGHT ≅ 160 kg

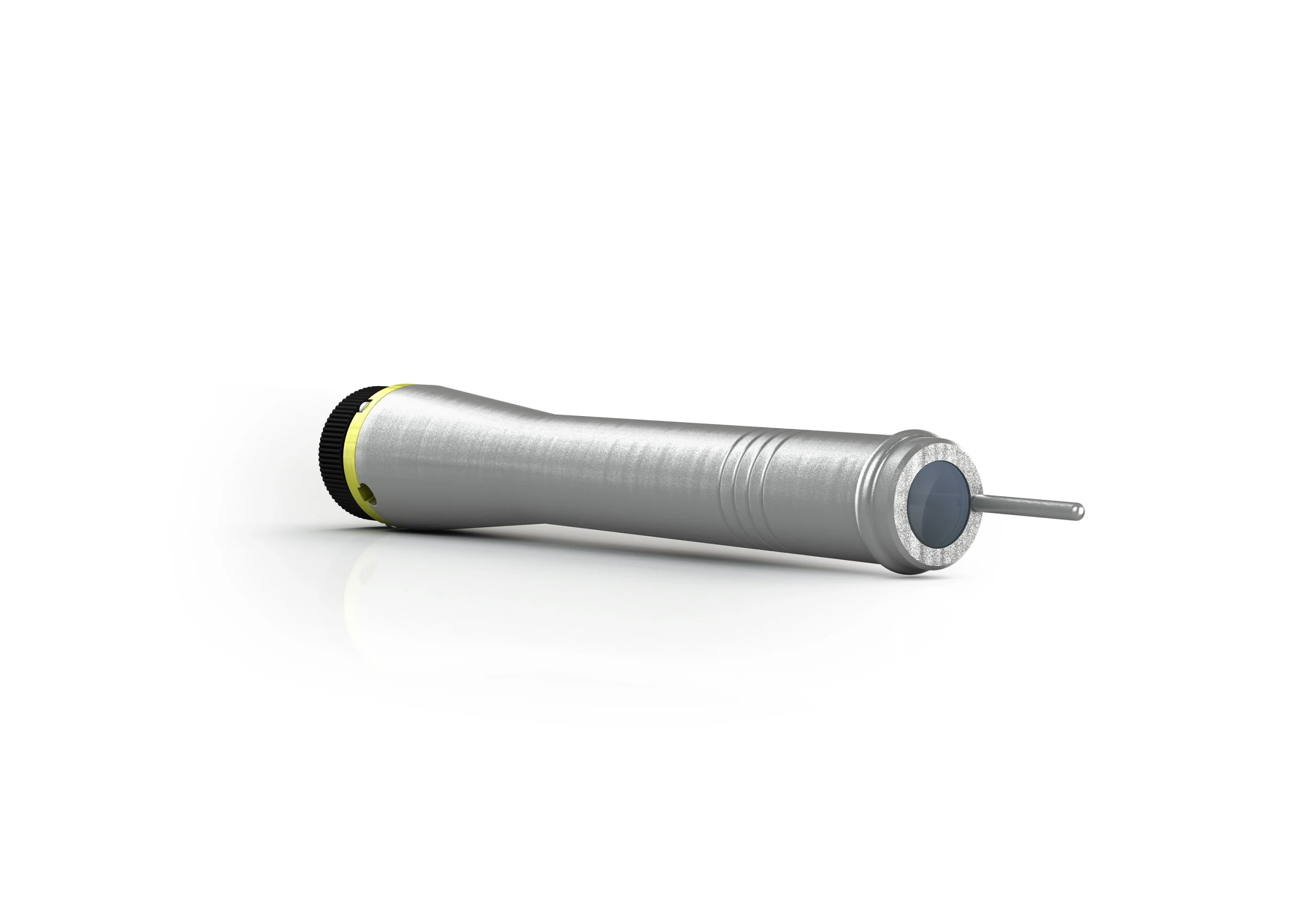

MicroSpot PICO handpiece
The new MicroSpot PICO handpiece that takes fractional therapies to the next level. The user can offer fractional therapies with a wavelength of 1064 nm providing 64 individual spots in an area of 7 × 7 mm2. The spots are really homogeneous thanks to the built-in DOE, which makes it the ideal choice for this type of treatment.
This set offers the variety required today, taking into account the highest requirements when customers request laser treatments.
