AeroDR2 1417S, Wireless Digital Radiography Systems
MANUFACTURER : KONICA MINOLTA
SPECIALTIES : Radiology - Diagnostic

Second-generation standard model that inherits the high-performance specifications. With superior durability and lightweight, it is the best solution for mid-range facilities with a need for frequent imaging.

DETAILED DESCRIPTION
TECHNICAL SPECIFICATIONS
ACCESSORIES
RELATED FILES
VIDEO

CsI scintillator
Lightweight 2.5 kg, Robust structure
Water resistance IPX6
AeroSync (AED function) (AED: Automatic Exposure Detection)
Quick charging within 13 minutes

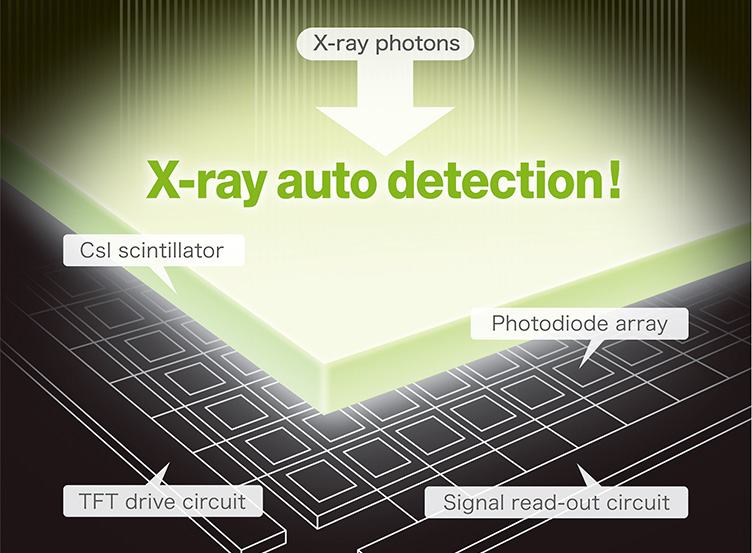

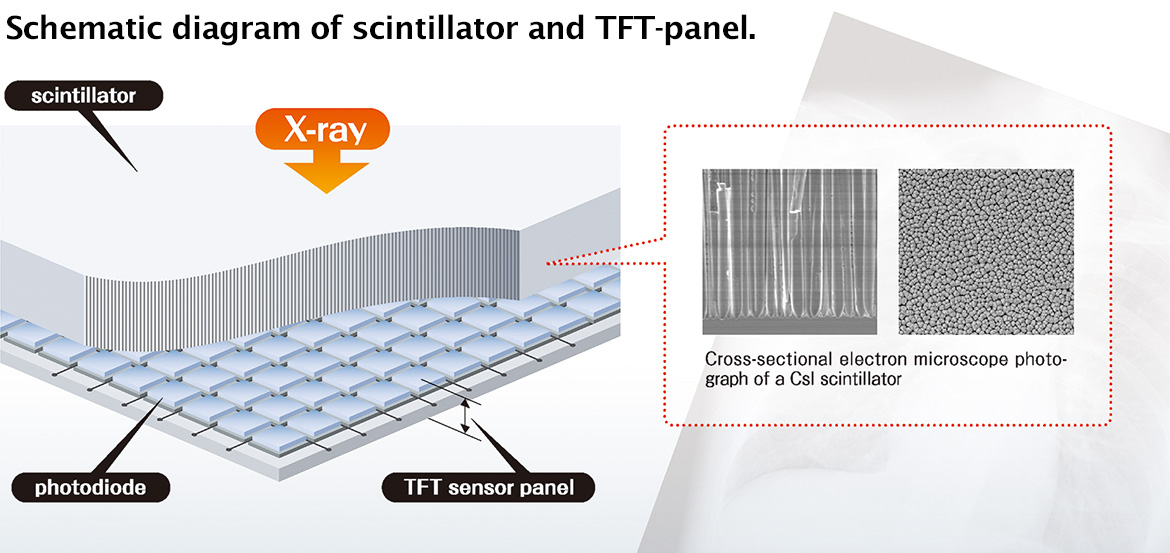

Self-developed and self-manufactured CsI model
We developed and manufactured the detector internally, including the scintillator, adopting CsI for the scintillator even in the standard model. Also, as an automatic X-ray detection technology, the product provides the same AeroSync function as the high-performance model, and provides a DR system without requiring a connection to an X-ray device.

Long-life battery
This product is the first portable DR using a Lithium-ion capacitor, and has received attention in the environmental, energy, and many other fields. It is safer than Lithium-ion secondary batteries and is in no danger of firing due to overcharging or drop impact. Also, the Lithium-ion capacitor and the power saving technology have reduced the charging time to 13 minutes, which enables speedy operation.

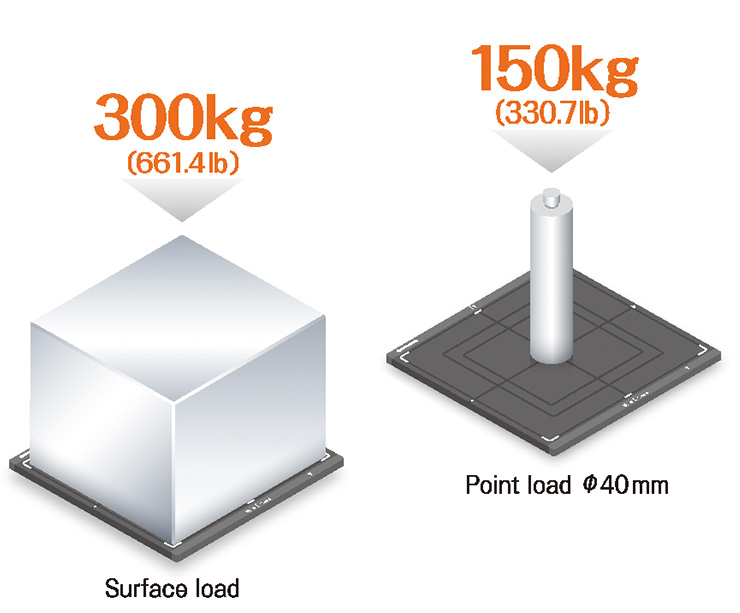

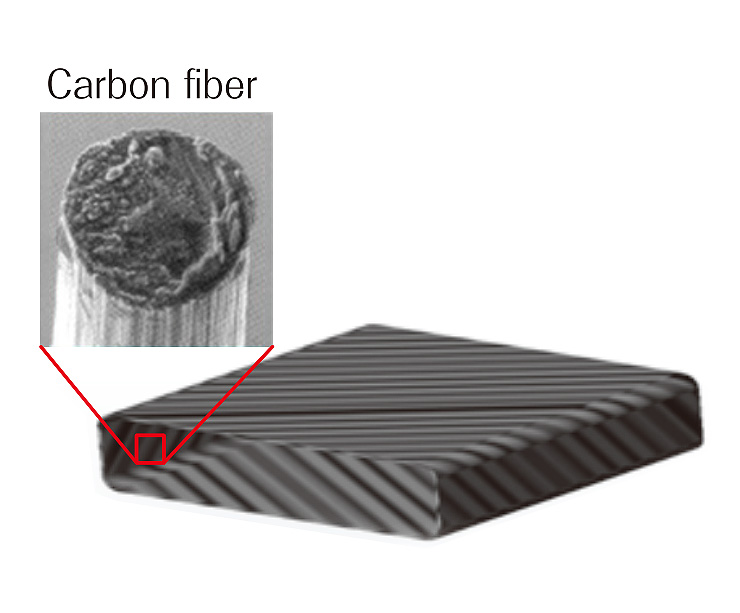

Combination of lightweight design and durability
To protect the detector from various daily impacts and loads, we adopted a lightweight robust monocoque carbon housing. We reduced the weight to 2.5 kg while maintaining high durability. The load tolerance allows a surface load of 300 kg and a point load of 150 kg. Also, the water resistance rating is IPX6, and the structure prevents the detector from damage due to penetration of blood or urine.
